Intel 11th gen Rocket Lake Desktop Processors: Specs Price , Availability
Intel has finally launched its latest 11th Gen desktop processor lineup. Codenamed Rocket Lake S, the latest processor lineup is based on Intel’s refined 14nm process node. These processors are built on the new Cypress Cove architecture, feature up to 8 cores, and bring features like PCIe 4.0, resizable BAR, and more. Let’s learn more about the 11th Gen Intel Rocket Lake desktop processors.
11th Intel Rocket Lake S Desktop Processors
The Intel Rocket Lake family consists of Core i5, Core i7, and Core i9 processors. There are no 11th Gen Core i3 and lower-tier processors here. Instead, the company is refreshing last generation processors with slight changes as in the clock speed for them.
The Rocket Lake S processors will officially be available from 30th March 2020. The pricing (RCP) starts at $182 for the Core i5-11400T and goes up to $539 for the Core i9-11900K.
Cypress Cove and the Backport
For Cypress Cove, Intel has taken its Sunny Cove design based on the 10nm node and backported it to its 14nm node. The graphics unit, too, is not completely new. The Xe-LP graphics on the 11th Gen Intel desktop processors are basically the Xe graphics on the 10nm Tiger Lake mobile processors re-engineered for the 14nm desktop platform. Still, the new Rocket Lake processors feature up to 32 execution units compared to Tiger Lake’s 96.
With the new architecture, Intel is claiming up to 19% improvements in IPC (Instruction per Clock) compared to its predecessor. Similarly, the Xe graphics brings up to a 50% improvement in the integrated graphics performance. The company has finally made the switch to PCIe 4.0 express lane. The new Rocket Lake family features up to 20 PCIe 4.0 lanes. To recall, the 10th Gen processors only had up to 16 PCIe 3.0 lanes. Similarly, the inclusion of the new memory controller brings support for DDR4-3200.
The 11th Gen Intel Rocket Lake desktop processors come with real-time memory overclocking. Similarly, the overclocking support has now been extended to H570 and B560 chipsets. Other performances tuning features include, AVX2 and AVX-512 voltage guard band override and support for Gear 1 and Gear 2.
11th Gen Core i9 Processors
This year’s Core i9 processors max out at eight cores. As a result. The only difference between the Core i7 and Core i9 in the Rocket Lake family will be the core frequency and the availability of Thermal Velocity Boost (TVB).
The Core i9-11900K sits at the top of the lineup. It is listed with base and peak frequency of 3.5GHz, and 5.3GHz (TVB), respectively. Intel claims that it can beat both last year’s i9-11900K and AMD’s latest Ryzen 9 5900X processors in certain 1080p games. Also, the processor is claimed to outperform 5900X in video creation workflow.
Intel has even admitted that the lower core count may affect the performance in certain multi-threaded applications. However, not everyone needs 10 cores and higher, and applications like games will make better use of the improved graphics instead.
All the new Core i9 processors come with 8 core and 16 threads. The Core i9-11900T is the only one on the list that doesn’t support TVB.
11th Gen Core i7 Processors
The Core i7 lineup consists of five SKUs with the i7-11700K on the top. As per the available information, the latter seems a lot like the Core i9-11900K but is a lot cheaper ($539 > $399). The difference here is the few MHz difference in the clock speed. Also, the Core i7 processors, though they support DDR4-3200 will operate on 2:1 DRAM to the memory controller by default (Gear 2) instead of the 1:1 ratio (Gear 1) on the Core i9s.
11th Gen Core i5 Processors

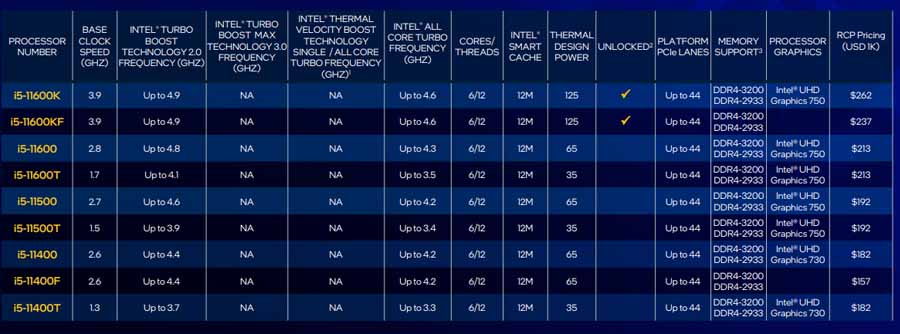

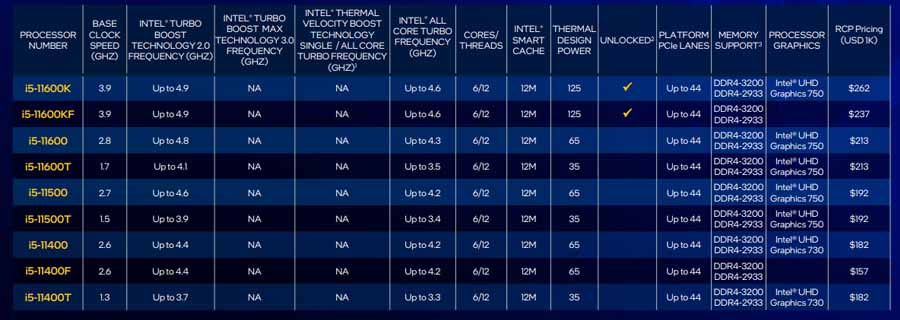

There are a lot more SKUs for the Core i5 processors. All these come with six cores and 12 threads.
10th Gen Refreshed Processors
Also, Intel has refreshed the 10th Gen Core i3 processors and lower-tier processors.
